MQTT (Message Queuing Telemetry Transport) is a lightweight, publish-subscribe messaging protocol designed for communication between devices, especially in scenarios where network bandwidth or resources are limited. It was developed for low-power, low-bandwidth, and low-latency communication, making it ideal for applications like the Internet of Things (IoT), machine-to-machine (M2M) communication, and mobile applications.
Here’s how MQTT works:
Key Concepts:
Broker: A server that receives all messages from clients and then routes them to the appropriate subscribers. The broker is central to the MQTT system.
Client: Any device (e.g., a sensor, phone, or application) that communicates via MQTT. It can either publish messages or subscribe to receive messages.
Publish: When a client sends a message to a specific topic.
Subscribe: When a client expresses interest in receiving messages from a particular topic.
Topic: A hierarchical system for organizing messages. Clients publish or subscribe to specific topics. For example, “home/livingroom/temperature” could be a topic for a smart home temperature sensor.
QoS (Quality of Service): MQTT provides different levels of message delivery assurance:
QoS 0: At most once (fire-and-forget).
QoS 1: At least once (guarantees delivery but may duplicate).
QoS 2: Exactly once (ensures no duplication).
MQTT Strengths:
Lightweight: Minimal overhead, making it efficient for low-bandwidth environments.
Scalable: Easily handles a large number of clients and connections.
Low Power: Suitable for devices with limited processing power or battery life.
Real-Time Messaging: Facilitates quick and reliable delivery of messages.
Common Use Cases:
IoT (Internet of Things): Sensors and devices communicate with each other and with the cloud.
Home Automation: Devices such as smart thermostats, lights, or security systems.
Healthcare Devices: For remote monitoring of patient data.
Mobile Messaging Apps: For real-time communication where bandwidth is limited.
In summary, MQTT is widely used in IoT ecosystems and other resource-constrained applications due to its simplicity and efficiency.
IO-Link is a standardized, open communication protocol used primarily in industrial automation systems for connecting sensors, actuators, and other field devices to a control system. It operates on existing sensor and actuator wiring (such as 3-wire systems) and allows digital data exchange between the devices and a master control unit, typically a programmable logic controller (PLC).
Key Features of IO-Link:
Bidirectional Communication: Unlike traditional systems where only unidirectional signals (like a simple on/off state) are sent, IO-Link enables both sending and receiving data, including device status, diagnostic information, and configuration details.
Point-to-Point Protocol: IO-Link operates as a point-to-point communication system between an IO-Link master and an IO-Link device, meaning each connection is dedicated between the master and its individual device.
Parameterization and Diagnostics: IO-Link allows remote configuration of devices and real-time monitoring of their status. This feature aids in reducing downtime by providing early warning of potential device failure or performance issues.
Backward Compatibility: IO-Link can be used with standard sensor/actuator connections, meaning it doesn’t require specialized cabling or connectors, making it easier to implement in existing systems.
Flexible and Scalable: IO-Link can be integrated into a range of fieldbuses and protocols, such as PROFIBUS, PROFINET, Ethernet/IP, and others, offering flexibility in automation systems.
Cost Efficiency: Since it uses standard 3-wire sensor cables, it’s cost-effective to install and maintain compared to other communication protocols that might require more complex wiring.
Use Cases:
Smart sensors: Adjust sensor parameters remotely to fit specific application needs without needing to access the sensor physically.
Predictive maintenance: Collect diagnostic data to predict and prevent equipment failures.
Automatic reconfiguration: When a device is replaced, the IO-Link master can automatically configure the new device with the correct settings.
IO-Link simplifies the integration of field devices into automation systems, making them more intelligent and adaptable.
We asked ChatGPT what the conditions were that could cause the dam to fail and what the impact would be.
The Nolichucky Dam, a hydroelectric dam located on the Nolichucky River near Greeneville, Tennessee, has been part of the local landscape for decades. Though it’s been out of commission as a power generator since 1972, the dam still holds back the sediment-heavy waters of the river, creating a small reservoir. Like any aging infrastructure, the possibility of failure is a real concern. Understanding the conditions that could lead to the dam’s failure is essential for both public safety and environmental protection. In this blog post, we’ll explore the factors that could potentially lead to a failure of the Nolichucky Dam.
1. Structural Deterioration Due to Age
The Nolichucky Dam was constructed in 1913, which makes it over a century old. Dams of this age are prone to structural issues due to the natural wear and tear of materials. Concrete, for example, can deteriorate over time due to freeze-thaw cycles, water seepage, and the chemical breakdown of the materials used in construction. Cracks or erosion of the dam’s foundation could weaken its ability to hold back water, especially during periods of high stress, like heavy rains or flooding.
Key Risks:
Cracks in the dam wall could grow over time, increasing the risk of sudden failure.
Weakened foundation due to sediment buildup or soil erosion could cause parts of the dam to collapse under pressure.
2. Excessive Rainfall and Flooding
One of the most common causes of dam failure is excessive rainfall, particularly in regions prone to heavy storms or hurricanes. The Nolichucky Dam, located in the Appalachian region, is at risk during periods of prolonged heavy rain, which could increase the river’s flow beyond the dam’s capacity to control.
If the inflow of water exceeds the dam’s spillway capacity, water could overtop the dam, leading to erosion and potential structural failure. This is particularly concerning because the Nolichucky River has a history of flooding, and with climate change contributing to more intense storm events, the risk could increase over time.
Key Risks:
Overtopping of the dam could lead to rapid erosion of the structure, causing a sudden breach.
Flood-induced structural stress could overwhelm the dam’s ability to manage water flow.
3. Sediment Buildup and Hydrological Pressure
The Nolichucky River is notorious for carrying large amounts of sediment, which has been a problem since the dam was built. Over time, this sediment has accumulated in the reservoir behind the dam. The increased weight from this sediment buildup exerts pressure on the dam’s structure, potentially compromising its stability. Moreover, sediment can clog spillways and outlet pipes, making it harder for the dam to release water efficiently, especially during floods.
Key Risks:
Excessive sediment weight could increase pressure on the dam, especially during high-flow periods.
Blocked spillways could lead to higher water levels, contributing to overtopping or collapse.
4. Earthquakes and Seismic Activity
While Tennessee is not a major seismic hotspot, earthquakes, even small ones, can pose a risk to dams. The region has experienced minor seismic activity in the past, and even a moderate earthquake could cause cracks or shifts in the dam’s foundation, making it vulnerable to failure. Aging dams like the Nolichucky may not have been built with modern seismic safety standards, increasing their susceptibility to damage from even minor tremors.
Key Risks:
Seismic-induced cracks in the dam or its foundation could weaken structural integrity.
Sudden shifts in the riverbed could destabilize the dam, particularly if combined with high water pressure.
5. Neglect and Inadequate Maintenance
Though the Nolichucky Dam is no longer in use as a power-generating facility, it still requires maintenance to ensure its structural integrity. If regular inspections and repairs are not conducted, small problems like leaks or cracks can escalate over time. Moreover, debris buildup, vegetation growth, and unchecked erosion could exacerbate existing weaknesses. A lack of adequate monitoring and upkeep could lead to a failure that might otherwise have been preventable.
Key Risks:
Unattended cracks or leaks could worsen, leading to a larger failure.
Vegetation growth and root intrusion can further damage the dam structure.
6. Human Error or Intervention
Human factors, such as improper operation or inadequate emergency planning, can also contribute to dam failure. If water levels are not properly managed or if emergency spillways are not opened in time during heavy rainfall, the dam could be overwhelmed. Additionally, unauthorized construction activities near the dam or reservoir could inadvertently weaken the structure or compromise its safety.
Key Risks:
Operational mistakes in managing water flow during floods could increase failure risk.
Unauthorized construction or tampering near the dam could weaken its foundation or cause shifts in the water flow dynamics.
7. Climate Change and Extreme Weather Events
As climate change continues to influence weather patterns, dams like the Nolichucky face an increasing risk from extreme weather events. More frequent and intense storms, as well as unpredictable rainfall patterns, can strain aging dam infrastructure. The dam’s spillway may not be equipped to handle the increased volume of water that could come from future extreme weather events, leading to a heightened risk of failure.
Key Risks:
Intensified storms and rain events increase the likelihood of overtopping and erosion.
Unpredictable weather patterns make it harder to manage reservoir levels effectively, increasing the risk of mismanagement.
Conclusion: Preparing for a Potential Failure
While the failure of the Nolichucky Dam is not imminent, the conditions that could cause it to fail are real and multifaceted. Addressing these risks requires regular maintenance, thorough inspections, and contingency planning to mitigate the impact of a potential disaster. Additionally, public awareness and preparedness in downstream communities are essential to minimize the human and environmental toll in the event of a dam failure.
By understanding the conditions that could lead to its failure, stakeholders can work together to prolong the dam’s lifespan and protect both the surrounding ecosystem and human populations.
“What Could Happen if the Nolichucky Dam Failed?“
The failure of the Nolichucky Dam would have serious consequences for the surrounding environment, nearby communities, and infrastructure. Given the dam’s location and the volume of water and sediment it holds back, the effects of a breach would likely be both immediate and long-lasting. Here’s what could happen if the Nolichucky Dam were to fail:
Flash Flooding Downstream
One of the most immediate and dangerous consequences of a dam failure would be the sudden release of millions of gallons of water. The surge of water would flow rapidly downstream, potentially inundating communities along the Nolichucky River. This could cause severe flash flooding in towns and rural areas, particularly in Greeneville, Tennessee, and other nearby low-lying communities.
Flash floods can occur in minutes, giving little warning to residents. Homes, roads, bridges, and other infrastructure would be at risk of being washed away by the powerful torrent. Lives could be in danger if evacuation procedures are not swiftly enacted.
Key Impacts:
Severe flooding in downstream areas with potential for significant loss of life and property damage.
Damage to infrastructure, including roads, bridges, and power lines, which could cut off access to affected areas and hamper emergency response efforts.
Environmental Impact
The Nolichucky River is already sediment-heavy, and the failure of the dam could release a massive amount of trapped sediment and debris into the river system. This sediment has been accumulating for over a century and contains materials that could be harmful to the river’s ecosystem.
An uncontrolled release of sediment could choke aquatic habitats, causing a sudden shift in water quality and oxygen levels, which could result in a large-scale die-off of fish and other wildlife. The river downstream might experience prolonged turbidity, affecting water quality for weeks or months. This could also extend to larger water systems connected to the Nolichucky River, such as the French Broad River.
Key Impacts:
Massive sediment release, which could smother aquatic ecosystems and alter water quality.
Potential contamination of water sources, particularly if industrial or agricultural runoff trapped in the sediment is suddenly released.
Economic Consequences
A failure of the Nolichucky Dam would likely lead to significant economic losses in the region. Damage to homes, businesses, farms, and infrastructure could result in high recovery costs. Agricultural areas downstream could be flooded, leading to crop losses and soil erosion that would take years to repair. Local industries that rely on the river for water could also be impacted by the sudden degradation in water quality.
Tourism, particularly activities like fishing, kayaking, and river-based recreation, would be severely affected as well. The environmental damage and loss of wildlife could make the river unusable for recreational purposes for a long period of time, affecting businesses and local economies dependent on the river.
Key Impacts:
Widespread property and agricultural damage, with potentially high costs for rebuilding and restoring affected areas.
Loss of tourism and recreational activities, which could have long-term economic effects on local businesses.
Long-Term Recovery Challenges
Recovery from a dam failure would be a long and complex process. Beyond the immediate damage, the ecological recovery of the river system could take years. The sediment and debris carried downstream would need to be cleared, and riverbanks and ecosystems would require restoration. Roads and bridges damaged by the floodwaters would need to be rebuilt, further delaying recovery efforts.
Additionally, the loss of the dam’s ability to regulate water flow, even though it no longer serves as a power generator, could lead to long-term changes in the river’s behavior. Without the dam, the river may experience more extreme fluctuations in water levels, leading to increased flooding risks during storms and droughts during dry periods.
Key Impacts:
Years-long ecological restoration, requiring significant resources to bring the river and its surroundings back to a stable condition.
Increased risk of future flooding due to the loss of the dam’s ability to control water levels during heavy rain or storm events.
Conclusion: The Importance of Proactive Measures
The potential consequences of a Nolichucky Dam failure are far-reaching and devastating, highlighting the importance of proactive measures to prevent such a disaster. Regular inspections, maintenance, and emergency preparedness plans can help mitigate the risks. Additionally, local authorities and residents must remain vigilant, ensuring that emergency response systems are in place should the worst happen. By preparing in advance, the potential human, environmental, and economic toll of a dam failure can be minimized.
This is a basic course that is designed to teach someone with beginning to intermediate development skills such as web or application development, how to build, deploy and optimize mobile internet of things devices over Wi-Fi and cellular. The lessons include best practices in code design, development environments, hardware and software. There are a variety of ways to setup an IoT (Internet of Things) environment. IoT networks can run over wi-fi, cellular or local networks and are used generally for monitoring and remote relay of different types of camera or sensor data.

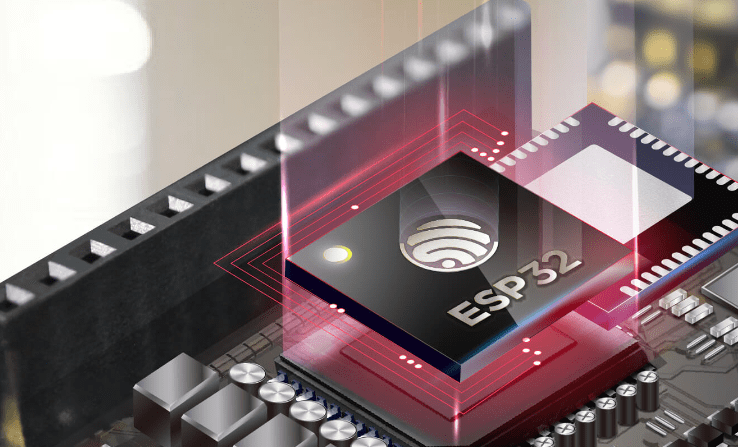

To learn the basics, we’re going to start with Arduino Cloud and an ESP32. The first lesson is really easy, it involves getting your development environment set-up and well organized. You’ll need a PC or MAC computer and the following.
You’ll need the proper USB data cable to connect the ESP32 to your computer.
After you’ve created your Arduino account and have the ESP32 board in hand, we’ll be connecting the board to your Arduino account. Stay tuned for the next lesson.
Cellular networks use a system of transceiver-equipped cell sites that divide a geographical area into small regions, known as cells. Each cell site consists of a transmitter and receiver, which are connected to a cellular network through a wired or wireless backhaul.
When a user makes a call or sends a text message from their mobile device, the device transmits the signal to the nearest cell site. The cell site then forwards the signal to the cellular network, which routes the call or message to its intended destination.
For cellular networks like 3G, 4G and 5G, they work with a concept called multiple access methods, so as to manage many devices that are connected at the same time.
To manage multiple devices, these networks use several different methods to allow multiple devices to share the same radio spectrum. Two popular methods are time-division multiple access (TDMA) and code-division multiple access (CDMA). In TDMA, the radio spectrum is divided into time slots, and each device is assigned a specific time slot during which it can transmit data. In CDMA, each device is assigned a unique code, which is used to spread its data across the radio spectrum. This allows multiple devices to share the same frequency at the same time without interfering with each other.
So in summary, cellular networks use a system of transceiver-equipped cell sites, connect to a wired or wireless backhaul, manage multiple devices, use multiple access methods like TDMA and CDMA and allow different devices to share the same radio spectrum and work simultaneously.
An Arduino can connect to a cellular network by using a cellular module. A cellular module is a small circuit board that contains the necessary hardware and software to connect to a cellular network and communicate with other devices over the network. There are a variety of different cellular modules available, but the most commonly used with Arduino are GSM (Global System for Mobile Communications) and GPRS (General Packet Radio Service) modules.
To connect an Arduino to a cellular network, you will first need to purchase a cellular module and a SIM card (Subscriber Identity Module), which is the physical card that stores a subscriber’s account information. The SIM card must be activated with a mobile network operator before it can be used.
Next, you will need to connect the cellular module to the Arduino. This typically involves connecting the module’s power, ground, and data pins to the corresponding pins on the Arduino board. Once the module is connected, you will need to upload a program to the Arduino that will control the module and allow it to connect to the cellular network.
The program will depend on the module that you are using and the communication protocol that it supports. Commonly the AT commands are used. The program will typically include commands to initialize the module, configure it for communication, make a connection to the network, and send and receive data.
Finally, you will need to test the connection to the cellular network. For this, you can use the Arduino to send a message or make a call, and verify that it was received by the intended recipient.
It is worth noting that the process may vary depending on the model and features of the specific cellular module you are using, the firmware you are using, the library and your knowledge in programming, the example I’ve provided is a general overview of the process.
